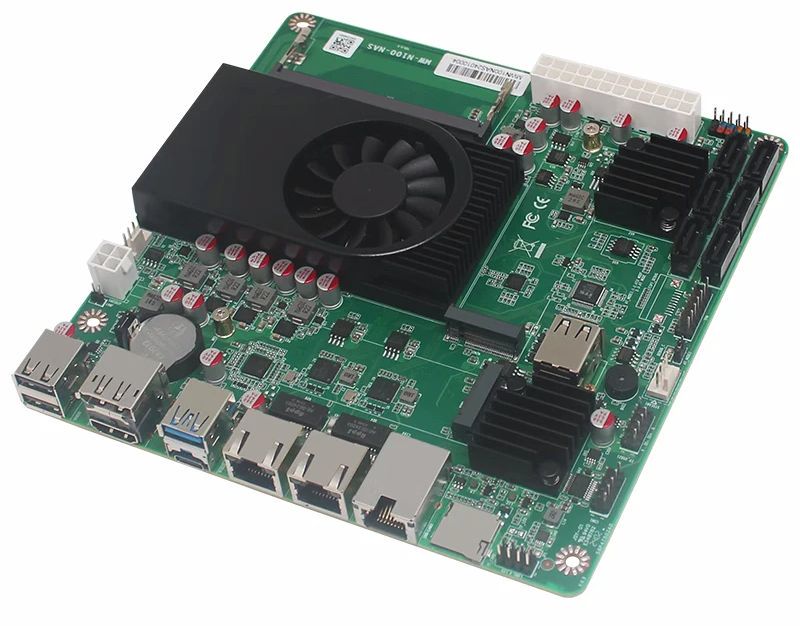

This mini ITX board combines Alder Lake-N processor with 10 Gb and 2.5 GbE networking and up to 8 storage devices (2 x NVMe + 6 x SATA) - Liliputing
(liliputing.com)
from Lemmchen@feddit.org to selfhosted@lemmy.world on 17 Jul 2024 16:51
https://feddit.org/post/885017
from Lemmchen@feddit.org to selfhosted@lemmy.world on 17 Jul 2024 16:51
https://feddit.org/post/885017
What’s your opinion on this board? Is it worthwhile to use as a home server?
threaded - newest
Pretty killer specs on paper. In my experience, these AliExpress boards have a bunch of minor annoyances that add up. Examples of those annoyances from my experience include:
So true. I’d complement the first point to include a general lack of documentation. Sometimes, we can’t even know some pinout schema without trial and error.
I own a Chuwi Larkbox X (another N100 device) and I can’t tell it to boot up after a power failure in the BIOS. So that is another thing to keep in mind.
It might be ‘state after G3’
I see one 4-pin, a 3-pin(?), a 8-pin and multiple 9-pin connectors.
Looks like 2x 4 pin fan headers:
<img alt="A diagram of the motherboard" src="https://liliputing.com/wp-content/uploads/2024/07/mw-100-nas_07.jpg">
But yeah I’ve got an AliExpress X99 board, which threw all sorts of hardware errors, had no fan speed control (100% all the time), no working hwmon sensors, and I ended up buying a used Supermicro board instead.
That looks interesting. Does anyone have a link to it? The only thing that comes up in the search results is the liliputing article.
I think you can find it for sale on AliExpress by searching for ‘Topton N100 NAS motherboard.’
If you simply search for “N100”, sort by price and scroll down a bit, you will find quite a lot of entries for that board.
The features sounded good enough for me to click with intent to buy (as a firewall/router), but no SFP and no PCIe expansion slot means I can’t use it with fiber. And with just one 10Gb port, the maximum it will be able to pass through is 2.5Gb/s (assuming the rest of the board is up to the task).
Looks like it would be nice for a small home server.
Could be good as a firewall with PFSense or something. 2.5gb to the ISP and a 10gb trunk port. Would be an upgrade for me. All I would use is a drive in it though.
servethehome.com/everything-homelab-node-goes-1u-… would probably be a better bet for a router
Could be an edge device, but not for inference. Could be a storage device carrier board I guess.
Acronyms, initialisms, abbreviations, contractions, and other phrases which expand to something larger, that I’ve seen in this thread:
3 acronyms in this thread; the most compressed thread commented on today has 3 acronyms.
[Thread #876 for this sub, first seen 18th Jul 2024, 02:35] [FAQ] [Full list] [Contact] [Source code]
I just got a standard Mini-ITX board with overspecced VRMs and a PCIe slot in the end. Good enough. At least it can sleep and behaves as expected.
